A hard disk interface is a standardized connection that links a hard drive to a computer’s motherboard. It controls how data is transferred, how commands are executed, and how power is delivered. This interface directly influences the drive’s speed, compatibility, and reliability.
A hard drive is a non-volatile storage device used to store and retrieve digital data, including operating systems, applications, and files. It provides long-term storage and retains information even when the system is powered off.
Hard Disk Drives (HDDs) are cost-effective solutions for storing large volumes of data, making them suitable for archiving and bulk storage. Solid-State Drives (SSDs) offer faster performance, greater durability, and lower power consumption, making them ideal for tasks that demand speed and reliability.
The hard disk interface types are listed below.

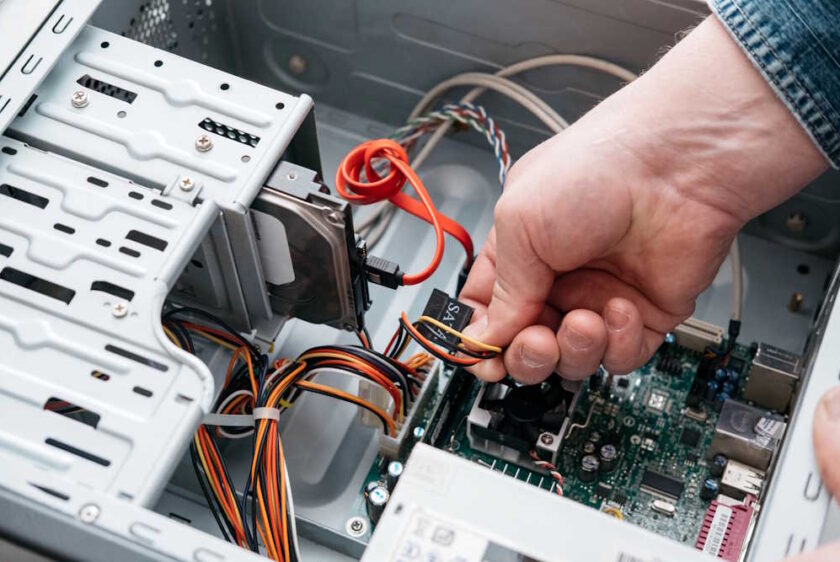

SATA is a hard disk interface used to connect storage devices to a computer’s motherboard. It replaced the older PATA standard and was introduced in 2003 by the Serial ATA Working Group. SATA offers several advantages, including simplified cabling for better airflow, support for hot-swapping drives, and significantly faster data transfer speeds compared to its predecessor. The SATA speeds are listed below.
SATA transmits data using dedicated send and receive pairs, which helps reduce signal interference and improve reliability. It remains widely used for Hard Disk Drives (HDDs) and many 2.5-inch Solid-State Drives (SSDs), offering a balance of cost and compatibility.
NVMe is a modern storage interface and protocol designed specifically for Solid-State Drives (SSDs). It connects through PCIe, allowing low-latency and high-speed data transfers. Developed by the NVM Express consortium and introduced in 2011, NVMe was built to optimize flash memory performance.
Below lists the typical NVMe speeds by PCIe generation.
NVMe bypasses legacy controllers, linking SSDs directly to the CPU. NVMe is widely used in modern PCs and servers, replacing SATA in performance critical storage.
SCSI, or Small Computer System Interface, is a legacy hard disk interface that was once widely used in servers and workstations. It evolved from SASI, developed by Larry Boucher at Shugart Associates in 1979, and was standardized in 1986. SCSI allowed multiple devices to share a single bus, each assigned a unique ID.
Transfer speeds ranged from 5 MB/s in SCSI-1 to 320 MB/s in Ultra-320. The interface used a controller to manage communication and supported both storage and peripheral devices.
Although parallel SCSI is no longer in use, its successor Serial Attached SCSI (SAS) and related technologies such as iSCSI continue to support enterprise storage systems.
IDE, also known as Parallel ATA or PATA, was introduced in 1986 by Western Digital in collaboration with Compaq and Control Data. It marked a significant advancement by integrating the controller directly into the hard drive, simplifying installation and reducing costs.
The interface used a 40-pin ribbon cable and supported two devices per channel. Device priority was managed through a master and slave jumper configuration, allowing systems to recognize and communicate with multiple drives on the same connection.
As the technology matured, IDE saw several performance upgrades as discussed below.
IDE was the primary interface for hard drives in desktop computers for many years. Although it has been replaced by faster and more efficient standards such as SATA and SAS, IDE remains present in older systems and certain industrial setups where legacy compatibility is required.
M.2 SATA is a storage interface that uses the SATA protocol within the compact M.2 form factor. It delivers the same performance as a 2.5-inch SATA SSD but connects directly to the motherboard, eliminating the need for cables.
Its speed is capped by the SATA III standard at around 6 Gb/s, which translates to approximately 550 to 600 MB/s. Introduced in 2013 as part of the M.2 Next Generation Form Factor (NGFF) specification, M.2 SATA remains a practical choice for budget-conscious and compatibility-focused systems.
SAS, or Serial Attached SCSI, is a high-speed hard disk interface designed for enterprise storage systems. Introduced in 2004, it replaced the older parallel SCSI standard while retaining its command set for compatibility. SAS supports both SAS and SATA drives, allowing flexible deployment across performance-critical and cost-sensitive environments.
Speeds are listed below.
SAS uses point-to-point connections to enable full-duplex data transfers, which improves reliability and reduces bottlenecks. Its architecture supports high scalability, making it well-suited for enterprise environments.
mSATA, or mini-SATA, is a compact SSD interface that uses the SATA protocol. Introduced in 2009, it was designed for ultrabooks, mini-PCs, and embedded systems. It offers performance comparable to 2.5-inch SATA SSDs but connects directly to the motherboard, eliminating the need for cables.
Using the SATA III standard, mSATA supports speeds of up to 6 Gb/s, which translates to approximately 550 to 600 MB/s. While it was once the preferred interface for thin and space-constrained devices, mSATA has largely been replaced by the faster and more flexible M.2 form factor.
Fibre Channel (FC) is a high-speed storage interface primarily used in enterprise Storage Area Networks (SANs). It transmits SCSI commands over optical fiber or copper connections, enabling fast and efficient communication between servers and storage devices.
Introduced in the 1990s by the T11 Technical Committee, Fibre Channel is known for its reliable, in-order, and lossless data delivery. These features make it well-suited for environments that demand consistent performance and high availability, such as data centers and mission-critical systems.
Speeds of common generations are listed below.
Fibre Channel uses point‑to‑point or switched fabric topologies for low‑latency, full‑duplex communication.
PCIe, or Peripheral Component Interconnect Express, is a high-speed serial interface used to connect components such as graphics cards, network adapters, and NVMe SSDs directly to the CPU. Introduced in 2003 by the PCI-SIG (Special Interest Group), PCIe replaced older standards including PCI, PCI-X, and AGP.
Speeds per lane, per direction are listed below.
Bandwidth scales with lane count (×1, ×4, ×8, ×16). PCIe remains the dominant interface in modern systems, with newer generations powering high‑performance storage and computers.
The main hard disk types are HDDs (Hard Disk Drives) and SSDs (Solid State Drives). HDDs use spinning magnetic platters and a mechanical arm to read and write data. They offer high capacity at low cost but are slower and wear out over time.
SSDs use flash memory with no moving parts, providing faster access, lower latency, and better durability. Though more expensive per gigabyte, SSDs are preferred for performance and often paired with HDDs for balanced storage.
A Hard Disk Drive (HDD) is a non‑volatile storage device that stores and retrieves digital data using magnetic storage on one or more rigid, rapidly rotating platters coated with magnetic material. Data is read and written by magnetic heads mounted on an actuator arm, allowing random access to any block of data.
HDDs are still used today because they offer high storage capacity at a low cost per gigabyte, making them ideal for bulk data storage in personal computers, enterprise servers, and cloud data centers. Consumer HDDs reach up to 16 TB, while enterprise models exceed 100 TB through multi‑platter designs2. Their affordability (around $0.02/GB) makes them indispensable for large‑scale storage where SSDs would be expensive.
The typical speed ranges of HDD are discussed below.
HDD technology has been in continuous use since IBM introduced the first model in 1956. Despite widespread SSD adoption, major cloud providers such as AWS, Microsoft Azure, and Google Cloud continue to rely on HDDs for archival and high-capacity workloads due to their proven reliability, scalability, and cost efficiency. Their ability to deliver large storage volumes at low cost makes them indispensable for data-heavy environments.
A Solid State Drive (SSD) is a nonvolatile storage device that uses NAND flash or other solid-state memory to store data without moving parts. Data is accessed electronically through memory cells, with a controller managing wear-leveling, error correction, and performance tuning. SSDs offer faster performance and greater reliability than traditional hard drives.
They are valued for speed, low latency, durability, and energy efficiency. SSDs reduce boot times, accelerate file transfers, and improve system responsiveness. Their resistance to shock and vibration makes them ideal for laptops, mobile devices, and servers.
The typical speed ranges of SSD are listed below.
Since their introduction in the early 1990s, SSDs have evolved from niche, high-cost devices to mainstream storage solutions. Today, they serve as primary storage in consumer laptops and high-performance desktops, while data centers use them for workloads needing fast access to large datasets. Their speed, reliability, and falling cost per gigabyte have made SSDs the preferred choice over HDDs.
The old hard disk interface types are listed below.
